Mô tả sản phẩm

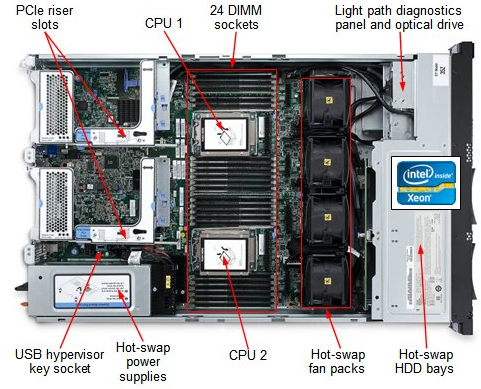

Bo mạch chính máy chủ IBM System x3650M4
Part Number: 00AM209
Bảo hành: 12 tháng
Thông số kỹ thuật:
Hãng sản xuất: IBM/Lenovo
Loại Socket: FCLGA2011
Chipset: Intel C602J
Hỗ trợ dòng CPU: Intel Xeon E5-2600 v2 Series
Số lượng CPU tối đa: Up to 2 Processors
Loại RAM: DDR3 RDIMM, LRDIMM và UDIMM, max 32GB 1.5 V DDR3 1866MHz
Số lượng khe cắm RAM: 24 slots (12 slots cho 1 CPU)
Tổng dung lượng RAM tối đa: Up to 768GB (Fully populated)
Loại ổ cứng: HDD/SSD, SATA/SAS 7.2K, 10K and 15K, SFF/LFF
Số lượng ổ cứng tối đa: 16 slots 2.5″ HDD/SSD and 32 slot 1.8″ SSD
Tổng dung lượng HDD tối đa: 36TB 3.5″ LFF HDD, 28.8TB 1.8″SFF HDD, 25.6TB 2.5″ SFF SSD
Hỗ trợ các loại cạc ServeRAID: M1215, M5110, M5210 Series
Tốc độ xử lý dữ liệu của RAID: 6Gbs and 12Gbs
Cạc mạng (Ethernet): 4 Ports intergrated 1Gb Ethernet and 1 RJ45 System management port
Tương thích với các dòng máy chủ:
IBM System 3650M4 7915 – A3x, B3x, C3x, C5x, D3x, F3x, G3x, H3x, J3x, L3x, 23x, 33x, 43x, M3x, 73x, 83x, E6Y, E7Y, E8Y, E8Y, E9Y, EFY, EGY, EHY, EJY, EKY, ELx, EOx, ERx, ESx, ETx, EUx, EVx, EWx, EPx, EQx
| Components | Specification |
| Processor support | Up to two Intel Xeon processor E5-2600 v2 product family CPUs with 12 cores (up to 2.7 GHz) or ten cores (up to 3.0 GHz) or eight cores (up to 3.3 GHz) or six cores (up to 3.5 GHz) or four cores (up to 3.5 GHz). Two QPI links up to 8.0 GT/s each. Up to 1866 MHz memory speed. Up to 30 MB L3 cache. |
| Chipset | Intel C602J |
| Memory | Up to 24 DIMM sockets (12 DIMMs per processor).
RDIMMs, UDIMMs, HyperCloud DIMMs, and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. Memory speed up to 1866 MHz. |
| Memory maximums | With RDIMMs: Up to 384 GB with 24x 16 GB RDIMMs and two processors
With UDIMMs: Up to 128 GB with 16x 8 GB UDIMMs and two processors
With HyperCloud DIMMs: Up to 768 GB with 24x 32 GB DIMMs and two processors
With LRDIMMs: Up to 768 GB with 24x 32 GB LRDIMMs and two processors |
| Memory protection | ECC, Chipkill, memory mirroring, and memory rank sparing. |
| Disk drive bays | Up to 32 1.8″ SSD bays, or 16 2.5″ hot-swap SAS/SATA bays, or up to six 3.5″ hot-swap SAS/SATA bays, or up to eight 2.5″ Simple Swap SATA bays, or up to six 3.5″ Simple Swap SATA bays. |
| Maximum internal storage | Up to 28.8 TB with 1.8 TB 2.5″ SAS HDDs, up to 16 TB with 1 TB 2.5″ NL SAS/SATA HDDs, up to 25.6 TB with 800 GB 1.8″ SATA SSDs, up to 25.6 TB with 1.6 TB 2.5″ SAS/SATA SSDs, or up to 36 TB with 6 TB 3.5″ NL SAS/SATA HDDs. Intermix of SAS/SATA is supported. |
| RAID support | 6 Gb SAS/SATA: RAID 0, 1, 10 with integrated M5110e or optional M5110; optional upgrades to RAID 5, 50 are available (zero-cache; 512 MB battery-backed cache; 512 MB or 1 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5110e or M5110 with 512 MB or 1 GB cache upgrades. 12 Gb SAS/SATA: RAID 0, 1, 10 with optional M5210; optional upgrades to RAID 5, 50 are available (zero-cache; 1 GB non-backed cache; 1 GB or 2 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with 1 GB or 2 GB cache upgrades. |
| Optical drive bays | One bay for optional DVD-ROM or Multiburner drive. |
| Tape drive bays | Optional Tape Enablement Kit is available to support one DDS5, DDS6, or RDX internal USB tape drive. |
| Network interfaces | Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45); two embedded 10 Gb Ethernet ports (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) on optional 10 Gb Ethernet mezzanine card (does not consume PCIe slot). |
| PCI Expansion slots | Up to six slots depending on the riser cards installed. The slots are as follows:Slot 1: PCIe 3.0 x8; full-height, full-length
Slot 2: PCIe 3.0 x8; full-height, half-length
Slot 3: PCIe 3.0 x8; full-height, half-length
Slot 4: Optional, requires second processor and second riser card
Slot 5: Optional, requires second processor and second riser card
Slot 6: Optional, requires second processor and second riser cardOptional riser cards available with PCIe x8 or PCIe x16 or PCI-X slots. |
| Ports | Four USB 2.0, one DB-15 video, one DB-9 serial, one RJ-45 systems management, four RJ-45 GbE network ports, two optional RJ-45 or SFP+ 10 GbE network ports on rear. Two internal USB ports (for embedded hypervisor and internal tape drive). |
| Power supply support | Up to two redundant hot-swap 550 W AC or 750 W AC or 900 W AC power supplies (all 80 PLUS Platinum certification), or -48V 750 W DC power supply options. |
| Video | Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600×1200 at 75 Hz with 16 M colors. |
| Hot-swap parts | Hard drives, power supplies, and fans. |
| Systems management | UEFI, Integrated Management Module II (IMM2), Predictive Failure Analysis, Light Path Diagnostics, Automatic Server Restart, IBM Systems Director and Active Energy Manager, ServerGuide. Optional Integrated Management Module Advanced Upgrade software feature for remote presence. |
| Security features | Power-on password, administrator’s password, Trusted Platform Module (TPM). |
| Operating systems | Microsoft Windows Server 2012 R2, 2012, 2008 R2 and 2008; Red Hat Enterprise Linux (RHEL) 5, 6, and 7; SUSE Linux Enterprise Server (SLES) 10, 11, and 12; VMware vSphere (ESXi) 5.0, 5.1, 5.5, and 6.0. |
