Mô tả sản phẩm

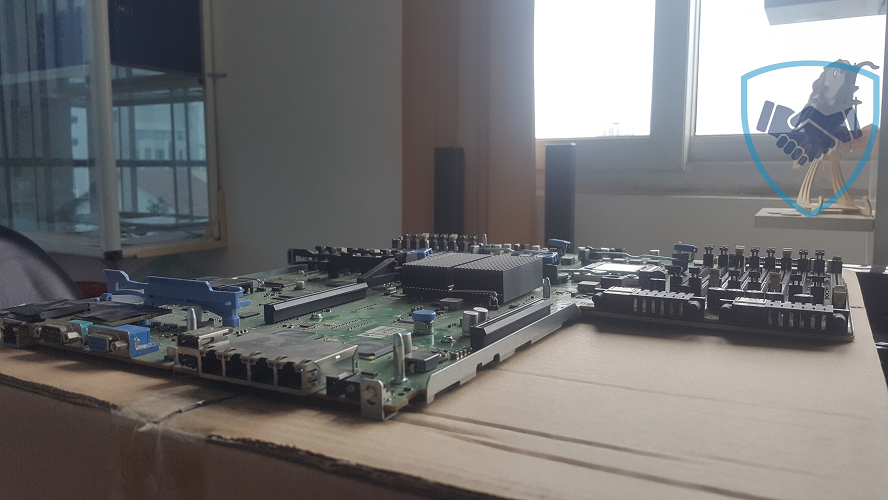

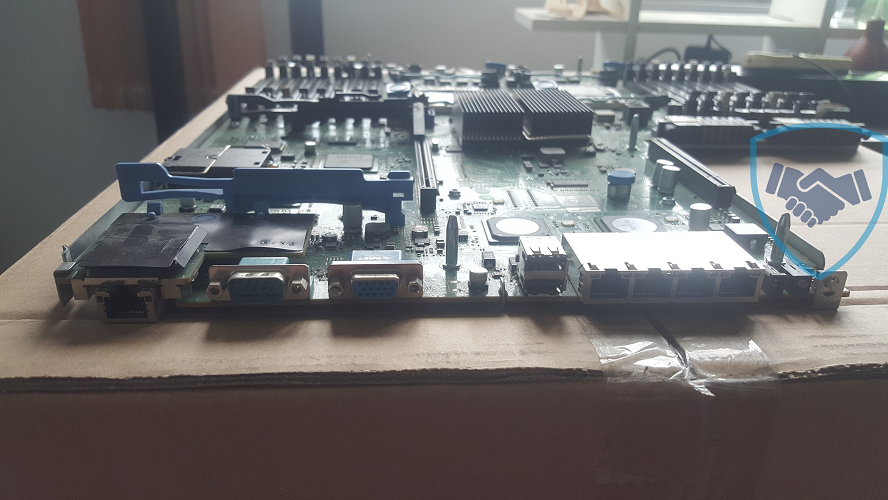

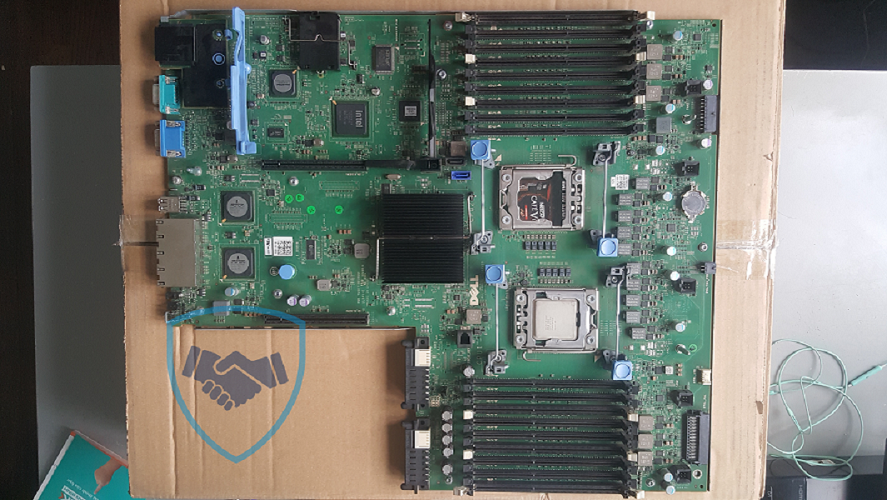

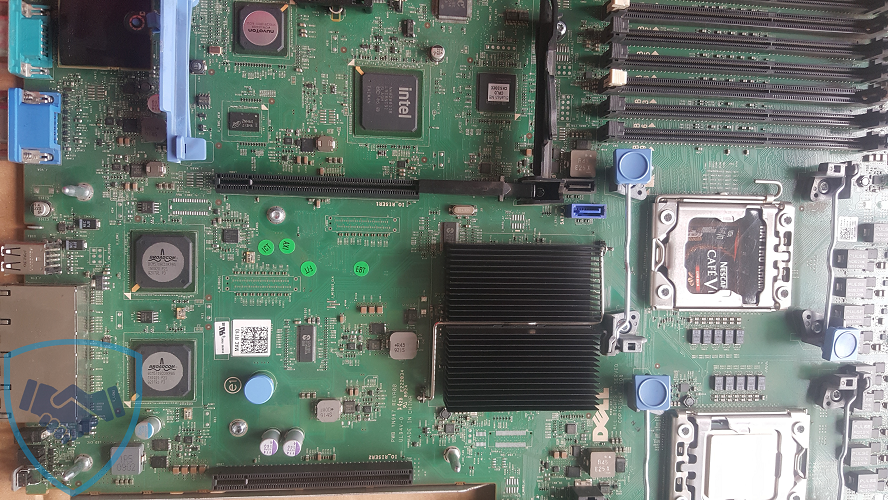

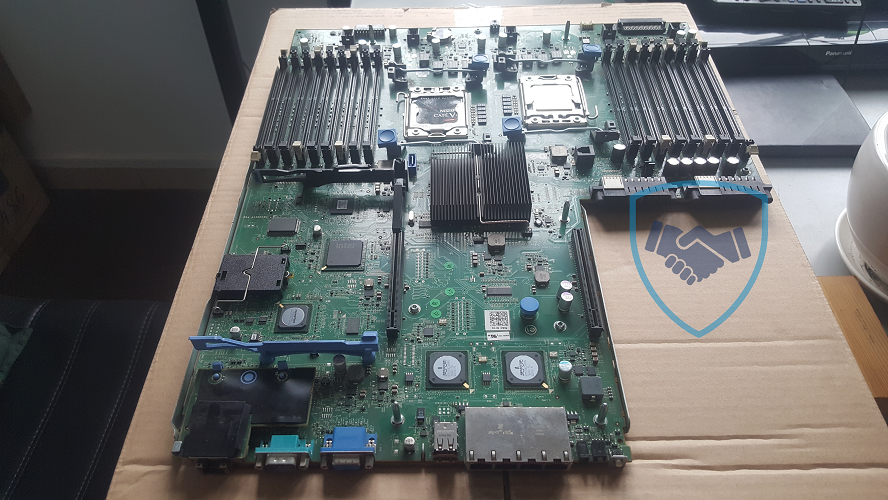

Bo mạch chính máy chủ Dell PowerEdge R710
Part Number: 00NH4P
Bảo hành: 12 tháng
Thông số kỹ thuật:
Hỗ trợ CPU: All Intel Xeon 5500/5600 series processor
Số lượng CPU tối đa: 02 slots
Số lượng khe cắm RAM: 18 slots
Dung lượng RAM cao nhất: 288GB (18 x 16GB)
Loại RAM tương thích: PC3-8500 (1066MHz)/PC3-10600 (1333MHz) DDR3 DIMMS
Cổng giao tiếp: 4 x 10/100/1000Mb ports, 2 USB ports, 1 VGA port.
Các tính năng nổi trội của bo mạch chủ (Mainboard) Dell PowerEdge R710 00NH4P:
Dual Intel® Xeon® 5500 and 5600 series quad-core and six-core processors, Intel® 5520 I/O Hub (IOH) with QuickPath Architecture, DDR3 memory, DIMM thermal sensors, PCI Express Generation 2, iDRAC with integrated video controller, dual-port embedded Gigabit Ethernet controllers, Internal SD Module, iDRAC6 Express, and optional iDRAC6 Enterprise.
Raid support: SAS 6/iR, PERC 6/i, PERC 6/E, PERC H200, PERC H700, PERC H800
Server Management: iDRAC6 Express, BMC, IPMI 2.0, Dell OpenManage™; Optional: iDRAC6 Enterprise, vFlash
HDD support: 12TB (with 2TB 3.5‖ nearline SAS or SATA drives)
HDD types: 2.5″ SAS 10K: 146GB, 300GB, 600GB; 2.5″ SAS 15K: 73GB, 146GB; 2.5″ SATA II 7.2K: 160GB, 250GB, 500GB, 1TB; 2.5″ Nearline SAS 7.2K: 500GB, 1TB; 2.5″ Nearline SAS 7.2K: 1TB; 3.5″ SATA 7.2K: 250GB, 500GB, 1TB, 2TB; 3.5″ SATA 5.4K: 2TB; 3.5″ 6Gbs SAS 7.2K: 2TB; 3.5″ SAS 10K: 146GB, 600GB
RAM support: Up to 288GB (18 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3 800MHz, 1066MHz, or 1333MHz
I/O Slots: 2 PCIe x8 + 2 PCIe x4 G2 or 1 x PCIe x16 + 2 PCIe x4 G2
NIC: Broadcom® BCM5709C 4 x iSCSI TOE; Optional: various NICs available
Power supply support: Two redundant hot-plug high-efficiency 570W or 870W
FAN support: Five hot-plug fans
Video: Matrox® G200 with 8MB of cache
Operating systems: Microsoft® Windows® Server 2008, 2012 and 2016; Novell® SUSE® Linux® Enterprise Server; Red Hat® Enterprise Linux®; Sun® Solaris™; Optional Embedded Hypervisors: Citrix®; XenServer™; Microsoft® Hyper; VMware® vSphere 4.1 or higher
