Mô tả sản phẩm

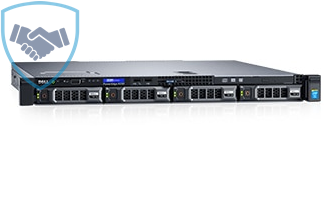

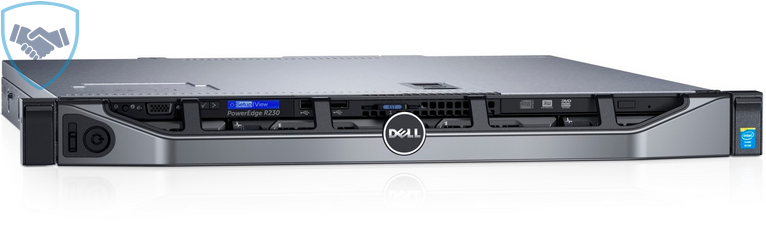

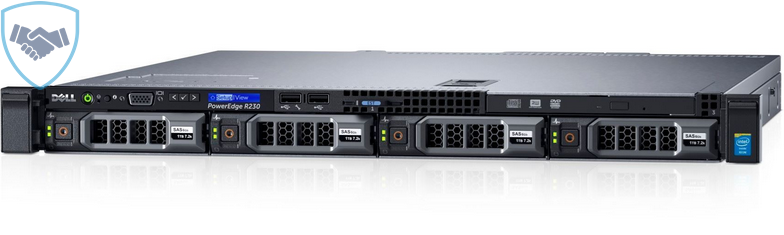

Máy chủ Dell PowerEdge R230 4LFF E3-1240v6
Part Number: R230-E3-1240v6
Bảo hành: 36 tháng
Thông số kỹ thuật:
Processor: Intel Xeon E3-1240v6 (3.7GHz/4-core/8MB/72W)
Memory: 8GB UDIMM 2133 MT/s DDR4 Low Volt Single Rank x4 Data Width (1/4)
Memory slots: 4 DIMM slots up to 64GB DDR4 2400MT/s
NIC: Broadcom 5720 GbE LOM Dual Port
Storage Controller: PERC H330 RAID Controller
Hard Drive: Hotplug SATA 3.5in Cabled Hard Drive
Internal Storage: Upto 4×3.5″ SATA, SAS or nealine SAS driver, max 4TB
ODD: None standard
PCI-Express Slots: 2 PCIe 3.0 slots: x16 Slot Full Height, x8 Slot
Power Supply: 250W cabled PSU (1/1)
Management: iDRAC8 Basic
FormFactor: Rack 1U
Tổng quan sản phẩm Dell PowerEdge R230:
Get organized and become more productive
– Consolidate data from multiple laptops or desktops onto a single server with up to 4 x internal 3.5″ cabled or hot-plug HDD.
– Ensure fast response times with the latest quad core Intel Xeon E3-1200 v6 product family, as well as flexible dual core processor options including Intel Pentium, Intel Core i3, or Intel Celeron.
– Adapt to changing workload conditions with a virtualization-ready server supporting Citrix XenServer, Microsoft Windows Server with Hyper-V, VMware vSphere ESXi, and Red Hat Enterprise Virtualization.
Accelerate application performance
– Drive greater memory performance and expand capacity up to 64GB through time with 4 x DIMM slots and enhanced DDR4 memory, offering 50% faster clock speed than previous-generation DDR3 which is 12.5% faster than the initial 2133 MT/s implementation of DDR4.
– Boost data throughput with 4 x PCIe 3.0 slots driving 2x data throughput compared to PCIe 2.0.
– Drive 2x IOPS performance with the PowerEdge PERC9 RAID controller, compared to previous-generation PowerEdge R220 equipped with PERC8.
Reliable, worry-free operation
– Deploy rapidly and turn the server over for productive work sooner with Dell OpenManage systems management solutions.
– Easily monitor system health and behavior with simple, intuitive Dell OpenManage Essentials console.
– Save IT administrator time by automating firmware updates — up to 92% reduction in firmware update time using Repository Manager auto-updates compared to manual updates.
Đối tượng áp dụng:
Các dòng máy chủ Dell PowerEdge R230 thường được áp dụng cho các doanh nghiệp nhỏ với số lượng người sử dụng giao động từ 5 – 20 người. Dòng máy chủ này hầu như đáp ứng được gần hết các ứng dụng cơ bản doanh nghiệp như: file server, kế toán (accounting), chấm công, camera, voice IP….. Các dòng máy chủ này thường được áp dụng cho các giải pháp mang tính nội bộ với quy mô nhỏ hiện nay.
Dòng máy chủ Dell PowerEdge R230 được tích hợp sẵn CPU tầm trung của Intel Xeon (E3-1200v6 series), với thiết kế dạng nằm (rack) R230 sẽ dễ dàng triển khai lắp đặt trong tủ rack mang tính thẩm mỹ cao.
Thông số chung của Dell PowerEdge R230:
Technical Specifications
Intel Processor family
1 x Processor from the following product families:
Intel Xeon processor E3-1200 v6 product family
Intel Pentium
Intel Core i3
Intel Celeron
Operating System
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2, x64
Microsoft Windows Server 2016
Red Hat Enterprise Linux
VMware vSphere ESXi
SUSE Linux Enterprise Server
Memory
Architecture: Up to 2400MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Sockets: 4
Maximum RAM: Up to 64GB
Drive Bays
2 x 3.5″ cabled HDD
4 x 3.5″ cabled HDD
4 x 3.5″ hot swap or 2.5″ hot swap in hybrid drive carrier
Dimension
Depth without bezel: 495.0 mm (19.5 in)
Depth with bezel: 551.3 mm (21.7 in)
Height: 42.8 mm (1.68 in)
Width without rack latches: 434.0 mm (17.08 in)
Width with rack latches: 482.4 mm (18.99 in)
Chassis
2 x 3.5″ cabled HDD 19.5″ 1U chassis
4 x 3.5″ cabled HDD 19.5″ 1U chassis
4 x 3.5″ Hot-Plug HDD 19.5″ 1U chassis
Power
250W cabled PSU
RAID Controller
S130, H330, H730, H830
Chipset
Intel C236
Storage
2.5” SATA 7.2K
2.5” nearline SAS 7.2K
2.5” 10K SAS HDDs
2.5” 15K SAS HDDs
2.5” SATA HDDs
3.5” Enterprise SATA 7.2K HDDs
3.5” nearline SAS 7.2K HDDs
3.5” 7.2K SATA entry drives
Slots
2 x PCIe 3.0 slots: x16 slot, full height (1×8 PCIe 3.0)+ x8 slot, low profile (1×4 PCIe 3.0)
Network controller
Broadcom BCM5720
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware vCenter
Dell OpenManage Connections:
HP Operations Manager
IBM Tivoli Netcool
CA Network and Systems Management
Dell OpenManage Plug-in for Oracle Database Manager
Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)
Hypervisor Support
Microsoft Windows Server with Hyper-V
VMware vSphere ESXi
Communications
2 X 1GbE LOM
USB
Rear: 2 x USB 3.0 ports
Front: 2 x USB 2.0 ports
Internal: 1 x USB 3.0 port
Rack Support
ReadyRails™ static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post racks.
