Mô tả sản phẩm

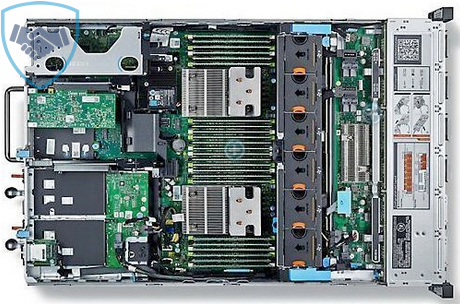

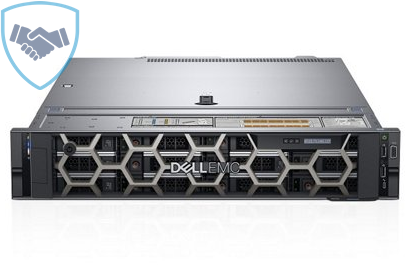

Máy chủ Dell PowerEdge R540 12LFF S4114
Part Number: R540-12LFF-S4114
Bảo hành: 36 tháng
Thông số kỹ thuật:
Processors: Intel Xeon Silver 4114 10C 85W 2.2GHz Processor (1/2)
Memory: 16GB RDIMM 2666MT/s Dual Rank
Memory slots: 16 RDIMM up to 512GB
NIC: 2 x 1GbE LOM
Storage Controller: PERC H730P with 2GB NV Cache (0, 1, 10, 5, 50, 60)
Hard Drive: Hotplug 3.5″ SAS/SATA
Internal Storage: 12 x 3.5” cabled HDDs (also supports 2.5” HDD in 3.5” hybrid drive carrier) max 120TB
ODD: None
PCI-Express Slots: 1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots
Power Supply: Dual Hot-plug Redundant (1+1) 750W
Management: iDRAC9 with Lifecycle Controller (Express, Enterprise)
Form Factor: Rack 2U
Tổng quan sản phẩm Dell PowerEdge R540:
Performance in a density-optimized 1U, 2-socket rack server
– Satisfy a variety of applications with the flexible PowerEdge R540. Its balanced combination of resources, expandability and affordability adapt to the changing demands of a modern data center. Optimize your application performance with one-button tuning. Scale for future requirements with up to 14 x 3.5″ drives. Embedded diagnostics and SupportAssist help to maximize uptime without added effort, in a worry-free environment.
– Ideal workloads:
+ Virtualization
+ Mail
+ Messaging
+ Video streaming
Achieve performance at scale with the PowerEdge portfolio
– Our modern compute platforms are built to scale easily and take advantage of technologies that lift application performance. The PowerEdge R540 rack server combines affordably and versatility, so you can adapt to a variety of applications and meet future demands.
+ Scale compute resources with the Intel Xeon Scalable processor family that delivers a 27% increase in processing cores and 50% increase in bandwidth over the previous generation of processors.
+ Optimize application performance with one-button tuning.
+ Enable storage flexibility with up to 14 x 3.5″ drives.
+ Free up storage with boot-optimized M.2 SSDs.
+ Free up storage with boot-optimized M.2 SSDs.
Gain productivity with intelligent, embedded management
– Dell EMC OpenManage intelligent automation enables you to spend less time on routine maintenance so you can focus on business-critical priorities.
+ Help maximize uptime with proactive diagnostics and automated remediation that increase productivity up to 90%.
+ Leverage existing management consoles with easy integrations for VMware vSphere, Microsoft System Center and Nagios.
+ Improve productivity with agent-free Dell EMC iDRAC9 for automated management.
+ Simplify deployment with OpenManage next-generation console and server profiles to fully configure and prep servers rapidly and scalably.
Fortify your data center with comprehensive protection
– A comprehensive, cyber-resilient architecture with security embedded into every server helps to protect your data.
+ Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
+ Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.
+ Automate updates that check file dependencies and proper update sequence, before deploying them independently from the OS/hypervisor.
+ Take control of your firmware consoles with embedded authentication that is designed to allow only properly signed updates to run.
Đối tượng áp dụng:
– Các dòng máy chủ Dell PowerEdge R540 thường được áp dụng cho các doanh nghiệp vừa với số lượng người sử dụng giao động từ 50 – 150 người. Dòng máy chủ này hầu như đáp ứng được gần hết các ứng dụng cơ bản doanh nghiệp như: Email, website, file server, kế toán (accounting), chấm công, camera, voice IP, Application Server ….. Các dòng máy chủ này thường được áp dụng cho các giải pháp mang tính đồng bộ và kết nối rộng với quy mô vừa hiện nay.
– Dòng máy chủ Dell PowerEdge R540 được tích hợp sẵn CPU tầm trung và cao cấp của Intel Xeon (Scalable Bronze, Silver, Gold, Platium series), với thiết kế dạng nằm tiết kiệm không gian (rack 2U) R540 sẽ dễ dàng trong quá trình sửa chữa vào bảo trì thiết bị mà doanh nghiệp, phù hợp với việc đặt ở các Data Center.
Thông số chung của Dell PowerEdge R540:
Intel Processor family
Up to two Intel Xeon Scalable processors up to 20 cores per processor
Bezel
Optional LCD bezel or security bezel
Dimensions
Form factor
2RU
Chassis depth
Max depth: 707.74 mm (w/bezel)
Max depth: 693.81 mm (w/o bezel)
Drive Bays
Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB
Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB
Optional DVD-ROM, DVD+RW
Embedded Management
IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional
Fans
Hot plug power supplies with full redundancy option
I/O and Ports
Network options
2 x 1GE LOM + (optional) LOM Riser 2 x 1GE or 2 x 10GE SFP+ or 2 x 10GE BaseT
Front ports
Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct USB

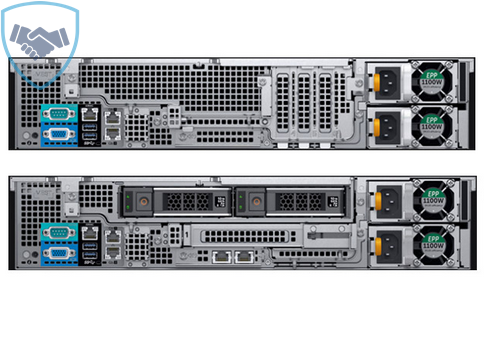

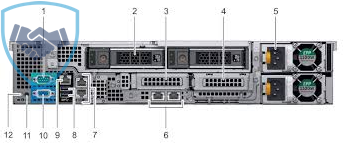

Rear ports
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
PCIe
Non rear storage config:
1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots
Rear storage config:
1 x HH/HL (1U Left Riser) + 1 x HH/HL (1U Right risers) slot or 1 x HH/HL (1U Left Riser) + 1 x FH/HL (1U Right riser)
Memory
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 1TB max
Supports registered ECC DDR4 DIMMs only
Management
Embedded / At-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise (available soon)
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs
OpenManage Integrations:
Microsoft Systems Center
VMware vCenter
BMC software (available from BMC)
OpenManage Connections:
Nagios Core and Nagios XI
Oracle Enterprise Manager
HPE Operations Manager i (OMi)
OpenManage Software
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
Power Supplies
Titanium 750W, Platinum 495W, 750W, and 1100W, Bronze 450W, 240HVDC 750W, 1100W 380 VDC
Recommended Support
Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information.
Security
TPM 1.2/2.0 optional
Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase
Supported Operating Systems
Canonical Ubuntu LTS
Citrix XenServer
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Storage Controllers
Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
