Mô tả sản phẩm

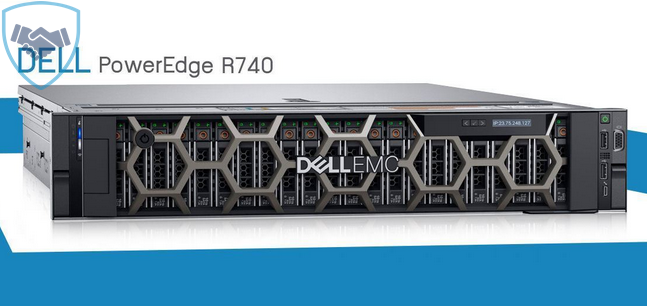

Máy chủ Dell PowerEdge R740 8LFF S4110
Part Number: R740-8LFF-S4110
Bảo hành: 36 tháng
Thông số kỹ thuật:
Processors: Intel Xeon Silver 4110 8C 85W 2.1GHz Processor (1/2)
Memory: 16GB RDIMM 2666MT/s Dual Rank
Memory slots: 24 RDIMM up to 3TB
NIC: Intel Ethernet I350 4 x 1Gb
Storage Controller: PERC H730P with 2GB NV Cache (0, 1, 10, 5, 50, 60)
Hard Drive: Hotplug 3.5″ SAS/SATA
Internal Storage: 8 x 3.5” cabled HDDs (also supports 2.5” HDD in 3.5” hybrid drive carrier) max 96TB
ODD: DVD+/-RW SATA Internal
PCI-Express Slots: Up to 2 x Gen 3 slots all x16
Power Supply: Dual Hot-plug Redundant (1+1) 750W
Management: iDRAC9 with Lifecycle Controller (Express, Enterprise)
Form Factor: Rack 2U
Tổng quan sản phẩm Dell PowerEdge R740:
General-purpose workhorse optimized for workload acceleration
– Maximize your application performance with the PowerEdge R740 server, which brings you the perfect balance of accelerator cards, storage and compute resources in a 2U, 2-socket platform. With up to three 300W accelerator cards or six 150W cards, the R740 has the versatility to adapt to virtually any application and provides the optimum platform for VDI deployments. The R740 offers up to 16 x 2.5” or 8 x 3.5” drives and iDRAC9, so you can scale to meet demands and simplify the entire IT lifecycle.
– Ideal workloads:
+ VDI
+ Private cloud
+ Artificial intelligence
+ Machine learning
Achieve IT transformation with the Dell EMC PowerEdge portfolio
– The R740 is a general-purpose workhorse optimized for workload acceleration. With its versatility, the R740 can help you transform your data center for VDI, artificial intelligence and software-defined storage (SDS).
+ Simplify and accelerate VMware vSAN™ deployments with validated, pre-bundled and tailored Ready Nodes.
+ Scale compute resources with Intel Xeon Scalable processors, delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation of Xeon processors.
+ Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730.
+Free up storage space using internal M.2 SSDs optimized for boot.
Automate productivity with intelligent, embedded management
– Dell EMC automation and intelligent management mean you spend less time on routine maintenance so you can focus on bigger priorities.
+ Help maximize uptime with proactive diagnostics and automated remediation that increase productivity up to 90%.
+ Leverage existing management consoles with easy integrations for VMware vSphere, Microsoft System Center and Nagios.
+ Improve productivity with agent-free Dell EMC iDRAC9 for automated, efficient management.
+ Simplify deployment with OpenManage next-generation console and server profiles to fully configure and prep servers in rapid, scalable fashion.
Fortify your data center with comprehensive protection
– Dell EMC provides a comprehensive, cyber-resilient architecture with security embedded into every server to protect your data.
+ Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
+ Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.
+ Automate updates that check file dependencies and proper update sequence, before deploying them independently from the OS/hypervisor.
+ Take control of your firmware consoles with embedded authentication that is designed to allow only properly designed updates to run.
Đối tượng áp dụng:
– Các dòng máy chủ Dell PowerEdge R740 thường được áp dụng cho các doanh nghiệp vừa và lớn đóng góp vai trò quan trong trong một hệ thống công nghệ thông tin của các tập đoàn với nhiều chi nhánh. Các doanh nghiệp số lượng người sử dụng giao động từ 100 – 500 người. Dòng máy thực hiện các giải pháp tổng thể cho doanh nghiệp như: Email, website, file server, kế toán (accounting), chấm công, camera, voice IP, Data Application ….. Các dòng máy chủ này thường được áp dụng cho các giải pháp mang tính đồng bộ và kết nối rộng với quy mô lớn hiện nay.
– Dòng máy chủ Dell PowerEdge R740 được tích hợp sẵn CPU toàn bô thế hệ mới của Intel Xeon (Scalable Bronze, Silver, Gold, Platium series), với thiết kế dạng nằm tiết kiệm không gian (rack 2U) R740 sẽ dễ dàng trong quá trình sửa chữa vào bảo trì thiết bị mà doanh nghiệp, phù hợp với việc đặt ở các Data Center.
– Ngoài các tính năng trên Dell PowerEdge R740 còn có thể hỗ trợ GPU (cạc đồ họa) để hỗ trợ cho việc chạy ảo hỏa hệ thống VDI (thường áp dụng cho các nhà máy sản xuất), hay làm máy chủ thiết kế trong xây dựng, mỹ thuật, công nghiệp…
Thông số chung của Dell PowerEdge R740:
Intel Processor family
Up to two Intel Xeon Scalable processors up to 28 cores per processor
Operating Systems
Canonical Ubuntu LTS
Citrix XenServer
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise
Server VMware ESXi
Bezel
Optional LCD bezel or security bezel
Data Protect
TPM 1.2/2.0 optional Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase
Dimensions
Form factor:Rack 2U
Chassis depth: 715.5 mm
Drive Bays
Front drive bays:
Up to 16 x 2.5” SAS/SATA/SSD, max 60TB
Up to 8 x 3.5” SAS/SATA, max 96TB
Memory
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only
Management
Embedded / At-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Consoles
OpenManage Enterprise (available soon)
OpenManage Essentials
OpenManage Power Center
Mobility
OpenManage Mobile
Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs
OpenManage Integrations:
Microsoft Systems Center
VMware vCenter
BMC software (available from BMC)
OpenManage Connections:
Nagios Core and Nagios XI
Oracle Enterprise Manager
HPE Operations Manager i (OMi)
OpenManage Software
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center
Ports
Network daughter card options:
4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
Front ports:
Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC

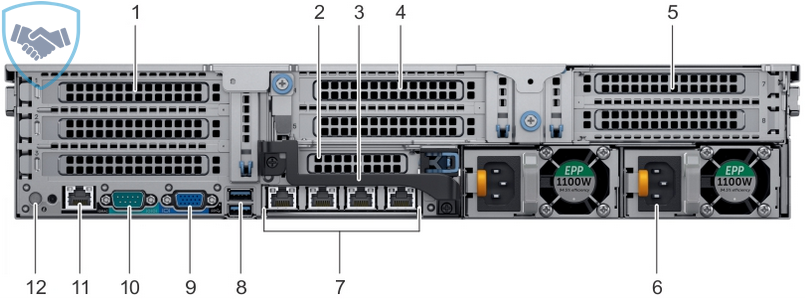

Direct Micro-USB Rear ports:
Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Video card:
VGA
PCIe
Up to 8 x Gen3 slots, Up to 4 x16
Power Supplies
Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)
Hot plug power supplies with full redundancy. Up to 6 hot plugs fans with full redundancy.
Storage Controllers
Internal controllers:
PERC H330, H730P, H740P, Software RAID (SWRAID) S140
Boot Optimzed Storage Subsystem:
HWRAID 2 x M.2 SSDs 120GB, 240GB
External PERC (RAID):
H840
12Gbps SAS HBAs (non-RAID):
External- 12Gbps SAS HBA (non-RAID)
Internal- HBA330 (non-RAID)
GPU
Accelerator options: Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100, or Intel Arria 10GX FPGA
