Mô tả sản phẩm

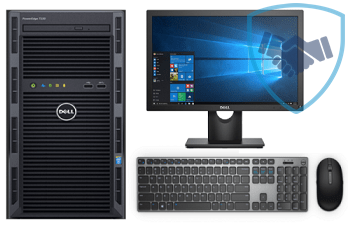

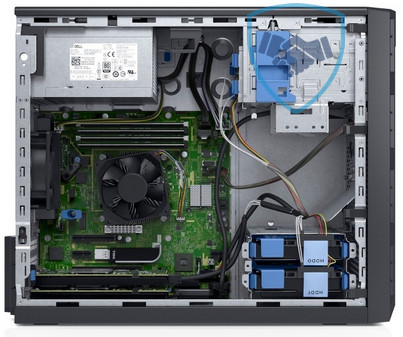

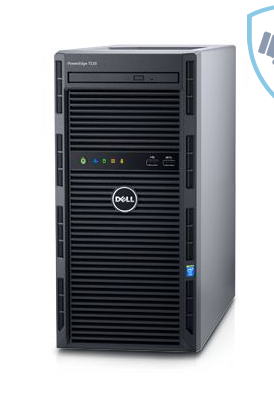

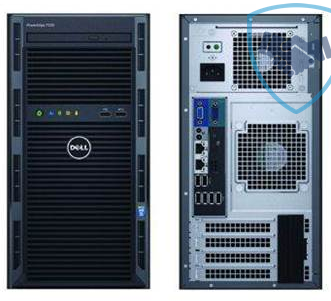

Máy chủ Dell PowerEdge T130 4LFF E3-1220v6
Part Number: T130-E3-1220v6
Bảo hành: 36 tháng
Thông số kỹ thuật:
Processor: Intel Xeon E3-1220v6 (3.0GHz/4-core/8MB/72W)
Memory: 8GB UDIMM 2133 MT/s DDR4 Low Volt Single Rank x4 Data Width (1/4)
Memory slots: 4 DIMM slots up to 64GB DDR4 2400MT/s
NIC: Broadcom 5720 GbE LOM Dual Port
Storage Controller: PowerEdge PERC9 RAID controller
Hard Drive: Non Hotplug SATA 3.5in Cabled Hard Drive
Internal Storage: 4 x 3.5” cabled HDDs max 32TB
ODD: DVD+/-RW SATA Internal
PCI-Express Slots: 1 x8 PCIe 3.0 (x16 connector), 1 x4 PCIe 3.0 (x8 connector), 1 x4 PCIe 3.0 (x8 connector), 1 x1 PCIe 3.0 (x1 connector)
Power Supply: 290W cabled PSU (1/1)
Management: iDRAC8 Basic
FormFactor: Tower 5U
Tổng quan sản phẩm Dell PowerEdge T130:
Get organized and become more productive
– Consolidate data from multiple laptops or desktops onto a single server with up to 4 x internal 3.5″ hard drives.
– Ensure fast response times with the latest quad core Intel® Xeon® E3-1200 v6 product family, as well as flexible dual core processor options including Intel Pentium®, Intel Core i3®, or Intel Celeron®.
– Easily and flexibly attach peripheral devices with eight external USB ports.
Accelerate application performance
– Drive greater memory performance and expand capacity up to 64GB through time with 4 x DIMM slots and enhanced DDR4 memory, offering 50% faster clock speed than previous-generation DDR3 which is 12.5% faster than the initial 2133 MT/s implementation of DDR4.
– Boost data throughput with 4 x PCIe 3.0 slots driving 2x data throughput compared to PCIe 2.0.
– Drive 2x IOPS performance with the PowerEdge PERC9 RAID controller, compared to previous-generation PowerEdge T110 II equipped with PERC8.
Reliable, worry-free operation
– Deploy rapidly and turn the server over for productive work sooner with Dell OpenManage systems management solutions.
– Easily monitor system health and behavior with simple, intuitive Dell OpenManage Essentials console.
– Save IT administrator time by automating firmware updates — up to 92% reduction in firmware update time using Repository Manager auto-updates compared to manual updates.
Đối tượng áp dụng:
Các dòng máy chủ Dell PowerEdge T130 thường được áp dụng cho các doanh nghiệp nhỏ với số lượng người sử dụng giao động từ 5 – 20 người. Dòng máy chủ này hầu như đáp ứng được gần hết các ứng dụng cơ bản doanh nghiệp như: file server, kế toán (accounting), chấm công, camera, voice IP….. Các dòng máy chủ này thường được áp dụng cho các giải pháp mang tính nội bộ với quy mô nhỏ hiện nay.
Dòng máy chủ Dell PowerEdge T130 được tích hợp sẵn CPU tầm trung của Intel Xeon (E3-1200v6 series), với thiết kế dạng đứng (tower) T130 sẽ dễ dàng trong quá trình sửa chữa vào bảo trì thiết bị mà doanh nghiệp không cần phải trang bị tủ rack.
Thông số chung của Dell PowerEdge T130:
Technical Specifications
Intel Processor family
1 x Processor from the following product families:
Intel Xeon processor E3-1200 v6 product family
Intel Pentium
Intel Core i3
Intel Celeron
Operating System
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2, x64
Microsoft Windows Server 2016
Red Hat Enterprise Linux
VMware vSphere ESXi
SUSE Linux Enterprise Server
Memory
Architecture: Up to 2400MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Sockets: 4
Maximum RAM: Up to 64GB
Drive Bays
4 x 3.5” cabled HDDs
Dimension
Height: 14.17 in / 36.0 cm
Width: 6.89 in / 17.5 cm
Depth: 17.12 in / 43.5 cm
Chassis
Tower 5U
Power
290W cabled PSU
RAID Controller
S130, H330, H730, H830
Chipset
Intel C236
Storage
3.5” Enterprise SATA 7.2K HDDs
3.5” nearline SAS 7.2K HDDs
3.5” 7.2K SATA entry drives
Slots
1 x8 PCIe 3.0 (x16 connector)
1 x4 PCIe 3.0 (x8 connector)
1 x4 PCIe 3.0 (x8 connector)
1 x1 PCIe 3.0 (x1 connector)
Network controller
Broadcom BCM5720
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware vCenter
Dell OpenManage Connections:
HP Operations Manager
IBM Tivoli Netcool
CA Network and Systems Management
Dell OpenManage Plug-in for Oracle Database Manager
Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)
Hypervisor Support
Microsoft Windows Server with Hyper-V
VMware vSphere ESXi
Communications
2 X 1GbE LOM
USB
Rear USB: 2 x USB 3.0 plus 4 x USB 2.0
Front USB: 1 x USB 2.0 plus 1 x USB 3.
