Mô tả sản phẩm

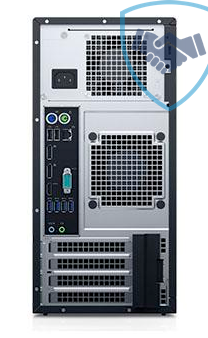

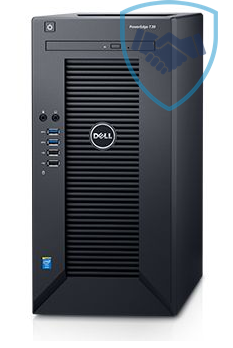

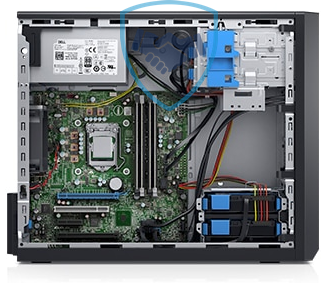

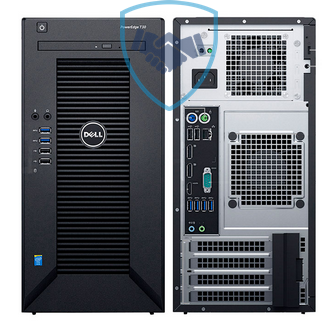

Máy chủ Dell PowerEdge T30 4LFF E3-1225v5
Part Number: T30-E3-1225v5
Bảo hành: 36 tháng
Thông số kỹ thuật:
Processor: Intel Xeon E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W)
Memory: 8GB UDIMM 2133 MT/s DDR4 Low Volt Single Rank x4 Data Width (1/4)
Memory slots: 4 DIMM slots up to 64GB DDR4 2400MT/s
NIC: Intel I219-LM GbE LAN 10/100/1000 1-port
Storage Controller: Intel Rapid Storage Controller 12.0
Hard Drive: 1TB 7.2K Entry SATA 3.5in Cabled Hard Drive
Internal Storage: 4 x 3.5” cabled HDDs max 8TB
ODD: DVD+/-RW SATA Internal
PCI-Express Slots: 1 PCIe x16 3.0, 1 PCIe x16 3.0 (x4 speed), 1 PCIe x4 3.0 1 PCI
Power Supply: 290W cabled PSU (1/1)
Management: Intel AMT 11.0
Form Factor: Mini Tower
Tổng quan sản phẩm Dell PowerEdge T30:
Get organized
– The PowerEdge T30 server, by storing and sharing information, helps you improve access to information, simplify processes and get more done in less time.
– Eliminate misplaced and lost data, images and videos due to “sneaker-net” file sharing. Users can share files and collaborate with central file storage to eliminate the headaches of having multiple copies and versions of files spread out among users.
– Consolidate data, images and videos stored on multiple media and media types in multiple locations. With the storage capacity of a server, you can centrally store user data and organize your stacks of DVDs, USB drives and external hard drives.
Enhance productivity
– The PowerEdge T30 server packs large internal storage capacity and capable performance into a mini-tower chassis designed to deliver efficient and worry-free operation. With the T30, data and applications from multiple desktops, workstations and mobile devices can be consolidated onto a single server to boost collaboration and productivity.
– Depending on your needs, you can take advantage of the processing power and storage density of the T30 to attain greater efficiency and productivity for your home or office.
– Save time when moving or copying files between locations. A server offers faster data transfers compared to external storage, cloud storage or email. Attain better business-transaction response times.
Compact and affordable design
– With its compact size and low sound levels, the T30 easily installs in your small office/home office environment and operates non-disruptively.
– Unobtrusive home- and office-level acoustics: The small form factor and deskside acoustics allow you to install it virtually anywhere.
– Reduce storage and software costs: Help reduce expenses by loading your data onto the T30 and letting users share applications, avoiding the extra costs of additional external storage devices, cloud storage space and copies of software.
Secure and manageable
– With or without an IT staff, the T30 makes it easy to secure your data and files with software RAID and optional backup restore solutions.
– Backup and restore: Easily implementautomatic data backup with Microsoft Windows Server.
– Easy management: Update software applications in one place instead of on multiple PCs to simplify tasks and save time.
Control your destiny
– Move your business to the next level with built-in expandability for growth. The PowerEdge T30 can help you:
+ Easily attach additional devices with up to 10 external USB ( six USB 3.0) ports.
+ Expand flexibly with four PCI/PCIe slots that allow you to grow at your own pace.
+ Consolidate data and media files with six internal hard drive bays supporting large storage capacity.
+ Drive applications and media quickly with your choice of a powerful Intel® multi-core processor.
+ Support large memory capacity with up to four DDR4 DIMMs to experience enhanced application response times and crisp video performance.
Đối tượng áp dụng:
Các dòng máy chủ Dell PowerEdge T30 thường được áp dụng cho các doanh nghiệp nhỏ với số lượng người sử dụng giao động từ 5 – 10 người. Dòng máy chủ này hầu như đáp ứng được gần hết các ứng dụng cơ bản doanh nghiệp như: File server, kế toán (accounting), chấm công. Các dòng máy chủ này thường được áp dụng cho các giải pháp mang tính nội bộ với quy mô nhỏ, rất phù hợp với các công ty mới thành lập nhưng cần có sự quản lý tập trung dữ liệu hiện nay.
Dòng máy chủ Dell PowerEdge T30 được tích hợp sẵn CPU tầm trung của Intel Xeon (E3-1200v5 series), với thiết kế dạng đứng (tower) T30 sẽ dễ dàng trong quá trình sửa chữa vào bảo trì thiết bị mà doanh nghiệp không cần phải trang bị tủ rack.
Thông số chung của Dell PowerEdge T30:
Technical Specifications
Intel Processor family
1 x Processor from the following product families:
Intel Xeon processor E3-1225 v5
Operating System
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Red Hat Enterprise Linux
Ubuntu 14.04 / 16.04
Memory
Architecture: 4 DIMM slots
Maximum RAM: up to 64GB DDR4 2133MT/s
Drive Bays
4 x 3.5” cabled HDDs
Dimension
Height: 14.17 inch / 359.9mm
Width : 6.89 inch / 175mm
Depth : 17.12 inch / 434.85mm
Chassis
Mini tower
Ports
10x USB, 1 microphone, 1x headphone, PS2, Displayport, HDMI, RJ45, serial, audio in, audio out
Power
290W cabled PSU
RAID Controller
Software RAID Intel Rapid Storage Controller 12.0 (supports SATA 6Gb/s or SATA 3Gb/s
Chipset
Intel C236
Storage
Up to 6 total SATA HDDs (4 x 3.5” SATA HDD + 2 additional 2.5” SATA HDD (w/ expansion kit and optional controller card)
Optical bay
Internal DVD+/-RW (standard on Intel Xeon configuration)
Slots
1 PCIe x16 3.0
1 PCIe x16 3.0 (x4 speed)
1 PCIe x4 3.0
1 PCI
Network controller
Intel I219-LM Gigabit Ethernet LAN 10/100/1000 1-port
Mangement
Intel AMT 11.0 (supported on Intel Xeon config)
Intel Standard Manageability
