Mô tả sản phẩm

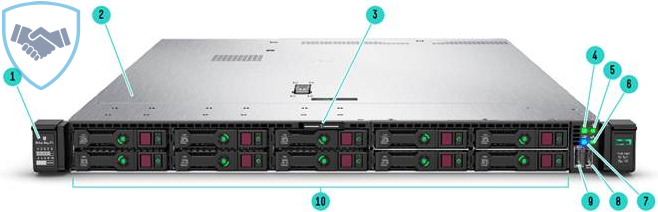

Máy chủ HPE Proliant DL360 Gen10 8SFF CTO S4110
Part Number: DL360G10-S4114 (867959-B21)
Bảo hành: 36 tháng
Thông số kỹ thuật:
Processor: Intel Xeon Silver 4114 10C 85W 2.2GHz Processor (1/2)
Memory: 16GB DDR4-2666 MHz V-R Smart Memory Kit
Memory slots: 24 DIMM slots for RDIMM, LRDIMM DDR4 Memory
NIC: HP Embedded 1Gb Ethernet 4-port 331i Adapter
Storage Controller: HPE Smart Array P408i-a SR Gen10 2GB Cache support RAID 0, 1, 5, 10, 50
Hard Drive: None ship standard
Internal Storage: Standard (8) Hot plug SFF SAS/SATA HDD bays; upgradable to 48TB
PCI-Express Slots: 3 PCIe slots (3 PCI slots available with upgrade option, second processor required)
Power Supply: HP 500W Flex Slot Platinum Power Supply (1/2)
Fans: 3 hot plug fans, non-redundant upto 6 hot plug fans
Management: iLO Management (standard), Intelligent Provisioning (standard) and iLO Advanced (optional), Insight Control (optional), HP OneView (optional)
Form Factor: Rack 1U, HP Easy Install Rails
Tổng quan sản phẩm DL360 Gen10:
– Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 71% performance gain and 27% increase in cores1, along with 2666 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB2 with an increase in performance of up to 66%3. With the added performance that 12 NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE iLO 5. Deploy this 2P secure platform for diverse workloads in space constrained environments.
What’s new
– Innovative design with greater flexibility to mix and match storage within a single chassis and capacity to support most dynamic workloads.
– HPE performance leadership with HPE Persistent Memory, which harnesses the speed of memory and combines it with the persistence of storage.
– Protect, detect, and remove with built-in security features such as Silicon Root of Trust, Runtime Firmware Validation, and Secure Recovery.
– Supports Intel Xeon Scalable processor with up to 28 cores and memory speeds of up to 2666 MT/s.
– New SMB focused offers regionally released as “Smart Buy Express” in the U.S. and Canada, “Top Value” in Europe, and “Intelligent Buy” in Asia Pacific and Japan.
Features
Industry-leading Performance with Versatile Compute
– HPE ProLiant DL360 Gen10 Server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2666 MT/s HPE DDR4 SmartMemory.
– With support for up to 12 NVDIMMs per chassis and 2X capacity of first-generation HPE NVDIMMs, HPE ProLiant DL360 Gen10 Server delivers up to 192 GB per system.
– Achieve greater capacity with flexible drive configurations with up to 10 SFF and four LFF drives along with an option to support up to 10 NVMe PCIe SSDs delivering enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
– HPE Persistent Memory, the world’s first non-volatile DIMM (NVDIMM) optimized on HPE ProLiant5, offers up to 20X reduction in database restart time preserving maximum uptime.
Innovative Design for Flexibility and Choice
– The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.
– Embedded 4x 1GbE along with HPE FlexibleLOM or PCIe standup 1GbE, 10GbE, or 25GbE adapters provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
– Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.
Security Innovations
– HPE iLO 5 enables the world’s most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
– Millions of lines of firmware code run before the server OS boots and with Runtime Firmware Verification, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
– Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.
– Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.
Industry-Leading Serviceability and Deployment
– HPE ProLiant DL360 Gen10 Server comes with a complete set of services offered by HPE Pointnext, delivering confidence, reducing risk, and helping customers realize agility and stability.
– Services from HPE Pointnext simplifies the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
– Services provided under Operational Services include – HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
– HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Đối tượng áp dụng:
Các dòng máy chủ HPE Proliant DL360 Gen10 thường được áp dụng cho các doanh nghiệp và cơ quan vừa và lớn với số lượng người sử dụng giao động từ 50 – 200 người. Dòng máy chủ này hầu như đáp ứng được gần hết các giải pháp từ phần mềm ứng dụng sản xuất tổng thể (ERP) cho doanh nghiệp, cơ quan cũng như các ứng dụng cơ bản như: website, email, file server, kế toán (accounting), chấm công, camera, voice IP….. Các dòng máy chủ này thường được áp dụng cho các giải pháp mang tính tổng thể, kết nối với nhau và có thể cân bằng tải các ứng dụng trong một môi trường CNTT quy mô của các doanh nghiệp, cơ quan hiện nay.
Dòng máy chủ HPE Proliant DL360 Gen10 được tích hợp sẵn CPU mới và cao nhất hiện nay của Intel Xeon (Silver, Gold, Platitium), những tính năng redundant hỗ trợ (RAM, HDD, CPU, Power Supply) việc hoạt động liên tục và hoàn toàn có thể thay nóng trong quá trình sửa chữa vào bảo trì.
Thông số chung của DL360 Gen10:
Intel Processor family
Intel Xeon Scalable 8100 series
Intel Xeon Scalable 6100 series
Intel Xeon Scalable 5100 series
Intel Xeon Scalable 4100 series
Intel Xeon Scalable 3100 series
Processor core available
28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 6 or 4
Processor cache
8.25 MB L3 11.00 MB L3 13.75 MB L3 16.50 MB L3 19.25 MB L3 22.00 MB L3 24.75 MB L3 27.50 MB L3 30.25 MB L3 33.00 MB L3 35.75 MB L3 38.50 MB L3
Processor speed
3.6 GHz, maximum depending on processor.
Maximum memory
3.0 TB with 128 GB DDR46Memory slots
24 DIMM slotsMemory type
HPE DDR4 SmartMemory
Drive type
4 LFF SAS/SATA/SSD 8 or 10 SFF SAS/SATA/SSD 10 premium SFF NVMe SAS/SATA/SSD 1 SFF or 1 Dual UFF rear drive optional depending on model
NVDIMM type
HPE NVDIMMs
NVDIMM capacity
64 GB, 128 GB, 192 GB, 384 GB
Infrastructure management
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (optional)
Power supply type
2 Flexible Slot
Expansion slots
3, for detailed descriptions refer to the QuickSpecs
Network controller
HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model
Storage controller
1 of the following, depending on model HPE Smart Array P408i-a SR Gen10 Controller or HPE Smart Array P816i-a SR Gen10 Controller or HPE Smart Array E208i-a SR Gen10 Controller
System fan features
Hot-plug redundant standard
Form factor
1U
Warranty
3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
Product dimensions (H x W x D)
17.11 x 27.83 x 1.69 in
Weight
28.74 lb minimum 35.86 lb maximum
