Mô tả sản phẩm

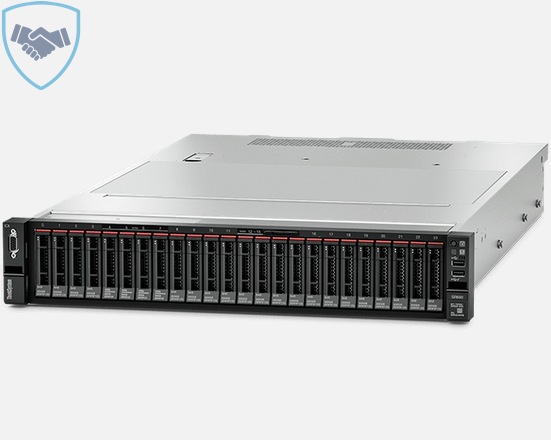

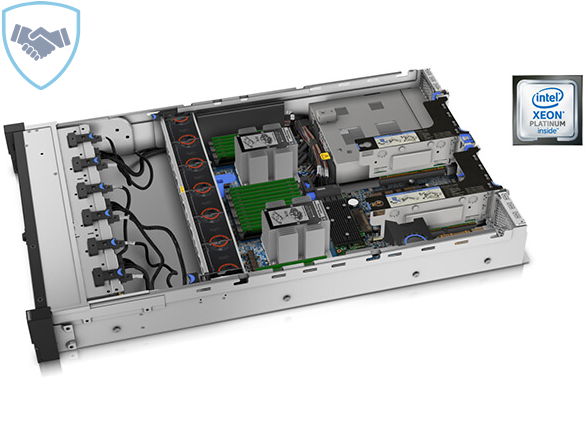

Máy chủ Lenovo ThinkSystem SR650 7X06A03VSG
Part Number: 7X06A03VSG
Bảo hành: 36 tháng
Thông số kỹ thuật:
Processors: Intel Xeon Gold 6152 22C 140W 2.1GHz Processor (1/2)
Memory: 32GB TruDDR4 2666 MHz (2Rx4 1.2V) RDIMM
Memory slots: 24 RDIMM up to 3TB
NIC: 4 x 10Gb Ethernet ports
Storage Controller: ThinkSystem RAID 530-8i (ServeRAID: 0, 1, 5, 10, 50)
Hard Drive: Hotplug 2.5″ SAS/SATA
Internal Storage: 8 x 2.5” cabled HDDs max 360TB
ODD: None
PCI-Express Slots: Up to 7x PCIe 3.0
Power Supply: 750W Platinum Hot-Swap Power Supply (1/2)
Management: XClarity Controller embedded management
Form Factor: Rack 2U
Tổng quan sản phẩm Lenovo ThinkSystem SR650:
Highlights
– Versatile and scalable to grow with your business needs.
– Optimized system design to meet performance and cost points for almost any workload.
– Shared components across the ThinkSystem portfolio for reduced parts inventory, quicker servicing, and higher availability.
– Leadership systems management that leverages industry standards, such as RedFish.
– Highly energy-efficient, with ASHRAE A2 compliance, and A4 compliance (with limitations) for up to 45°C continuous operation.
For compute-intensive workloads
– For medium to large enterprises, and managed and cloud service providers, Lenovo ThinkSystem SR650 is the optimum 2U, two-socket server—the most widely used server type worldwide. It’s engineered to deliver high performance with 205W CPUs, low-latency NVMe drives, and high-power GPUs.
– With Lenovo’s history of reliability, the highly flexible and configurable SR650 is the ideal platform for hyperconverged infrastructure (HCI) or software-defined storage (SDS). It provides a solid foundation for: 1) transforming physical resources into services, using validated designs for hybrid cloud; 2) performing analytics on streaming data, using validated designs for Big Data; and 3) increasing productivity of virtualized transactional systems, using validated designs for OLTP databases.
Versatile and scalable
– ThinkSystem SR650 incorporates up to two powerful Intel Xeon processor Scalable family CPUs, with 27 percent more cores and twice the memory capacity of the previous generation server. It supports two 300W high-performance GPUs and ML2 NIC adapters with shared management. Unique Lenovo AnyBay technology provides the flexibility to mix-and-match SAS/SATA HDDs/SSDs and NVMe SSDs in the same drive bays. Four direct-connect NVMe ports on the motherboard provide ultra-fast read/writes with NVMe drives and reduce costs by eliminating PCIe switch adapters. Plus, storage can be tiered for greater application performance, to provide the most cost-effective solution. Optional mirrored M.2 drives ensure reliability and quick OS initialization. SR650 also features 80 PLUS Platinum and Titanium PSUs, as well as continuous operation at 45°C, to reduce energy costs.
Easily managed

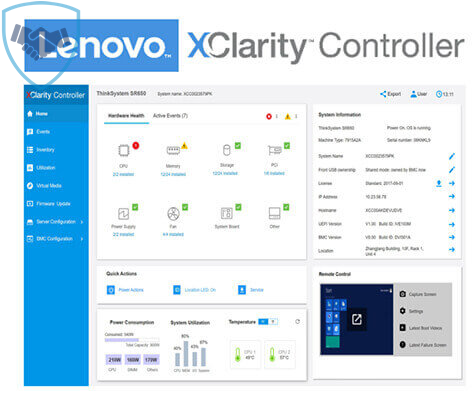

– Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates. – Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs.
– Lenovo servers continue to be the industry’s #1 most reliable, with the industry’s highest customer satisfaction rating.
Đối tượng áp dụng:
– Các dòng máy chủ Lenovo ThinkSystem SR650 thường được áp dụng cho các doanh nghiệp tầm trung và lớn đóng góp vai trò quan trong trong một hệ thống công nghệ thông tin của doanh nghiệp. Các doanh nghiệp số lượng người sử dụng giao động từ 100 – 500 người. Dòng máy thực hiện ứng dụng cơ bản cho doanh nghiệp như: Email, website, file server, kế toán (accounting), chấm công, camera, voice IP, Data Application ….. Các dòng máy chủ này thường được áp dụng cho các giải pháp mang tính đồng bộ và kết nối rộng với quy mô lớn hiện nay.
– Dòng máy chủ Lenovo ThinkSystem SR650 được tích hợp sẵn CPU toàn bô thế hệ mới của Intel Xeon (Scalable Bronze, Silver, Gold, Platium series), với thiết kế dạng nằm (Rack 2U) phù hợp với vị trí lắp đặt trong hệ thống tủ rack, dễ dàng trong quá trình sửa chữa vào bảo trì thiết bị của doanh nghiệp, phù hợp với việc đặt ở các trụ sở hoặc trung tâm dữ liệu (Data Center).
Thông số chung của Lenovo ThinkSystem SR650:
Intel Processor family
Up to 2x Intel Xeon Platinum processors, up to 205W
Memory
Up to 3TB in 24x slots, using 128GB DIMMs; 2666MHz TruDDR4
1.5TB at GA; 128GB DIMMs available in the near future. Available prior to GA via special bid.

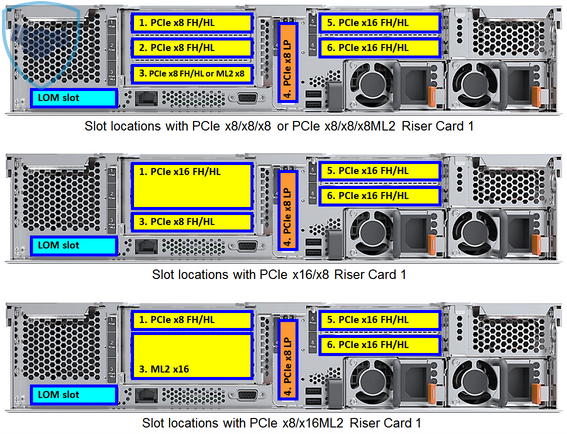

Expansion Slots
Up to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter

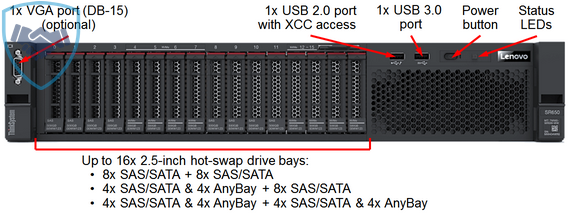

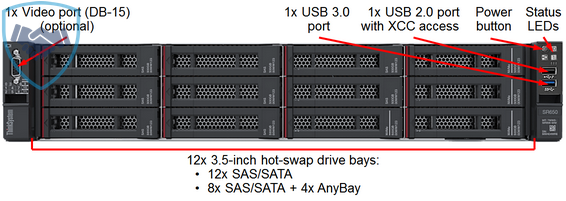

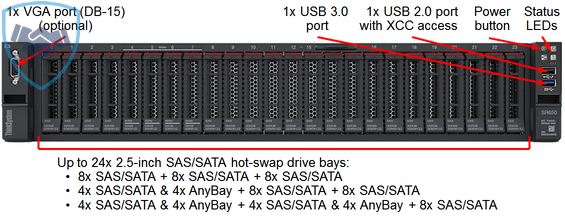

Drive Bays
Up to 24 HS bays (incl. 4 or 8 AnyBay): plus up to 2x mirrored M.2 boot (opt. RAID 1)
HBA/RAID Support
Hardware RAID (up to 24 ports) with flash cache; up to 16-port HBAs
Security and Reliailability Features
TPM 1.2/2.0; PFA; HS/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port

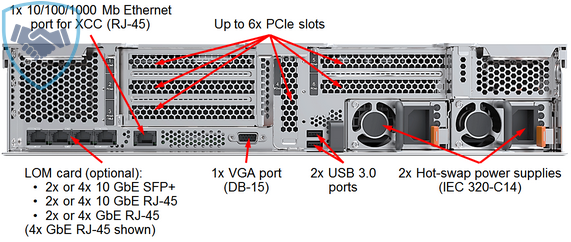

Network Interface
2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE mngmt port
Power
2x hot swap/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium
Systems Management
XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
Operating Systems Supported
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Limited Warranty
1- and 3-year customer replaceable unit and onsite service, next business day 9×5, opt. service upgrades
